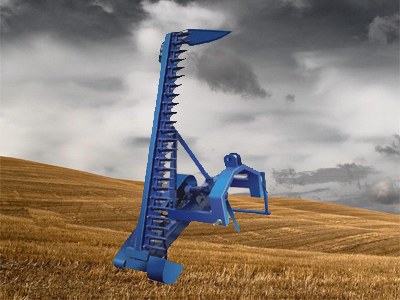

Guru Reaper

GURU tracor mounted reciprocating mowers are designed for cutting heavy fields or tall weeds and crops set-aside or conservation a creages, in ditchs and on hillsides or river or creek banks. This versatile sickle bar mower is powered by your tractor PTO, and mounts on your tractor category I or II three point hitches. Tractor sickle bar mower can handle many applications, simmilar to Boom Mower.

Special Features:-

Double action sickle bar mower
Available in working widths of 5ft, 6ft and 7ft.
Adjustable 3 points hitch fits either category I or II
Safety release
Compensation Spring
High cutting speed with low profile design allows cutter bar to hug the ground for smooth dosecut
20 - 75 HP tractors required, powered by tractor's 540 RPM PTO.

Features	Description
Power required	20 HP
Cutting Width (mm)	72 "
Blade	3 mm
Strip	6 mm
Pulley	5" and 7"
Bearing	6307, 6204, 6305
V Belts	B - 77 (2PC)
PTO Shaft Assembly	Cross Joke One Spring, Loaded 6 Spline, Cross Joke 6 Spline
Nut Bolts	Bolts mm size and Nut Lock Nut
Iron	Exctruded Section Pipe 100 X 100 X 5 mm 90 X 48 X 4 mm 50 X 25 X 2.5 mm 50 X 25 X 2 mm
Flat	150 X 20 mm 100 X 10 mm
Paint	A. Three in one chemical phosphating with rust prevent coating B. Polyurethane paint primer hardner Thinner
Shade	Air craft Blue
